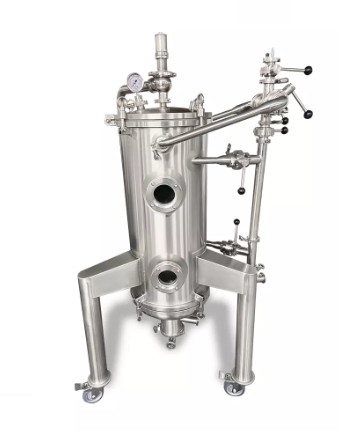

400L Fermentation Tank

Introducing the 400L Fermentation Tank: Precision in Fermentation. Designed for meticulous control, this tank creates the ideal environment for microbial transformation, with advanced temperature management and robust construction. Elevate your brewing with this technical masterpiece at the core of your fermentation process.

400L Stainless Steel Fermentation Tank with options for a top manway or side manway configuration. The fermenters are made of 304 stainless steel, and materials are laser cutting. High precision, smooth edges, reasonable price.

Product Overview - 400L Fermenter

Vessel Configuration

  • Effective volume = 400L, total volume = 500L --> extra 25% head space
  • Net Dimension: 960mm Dia x 1950mm H
  • Oval head & 60°conical bottom
  • Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire
  • Inner layer=3mm, pickling and passivating treated
  • Outer layer=2mm, Hairline polishing
  • Cooling jacket: Dimpled plate on cone and side
  • With glycol water inlet and glycol water outlet, tri-clamp type
  • PU Insulation layer=80mm on side and cone bottom
  • Design pressure 0.3MPa; Working pressure 0.15Mpa.
  • 60°Conical Cone bottom
  • 4 x heavy duty legs with leveling foot pads

Features include:

  • Top Manway or Side Manway --> based on your preference
  • CIP arm with internal 360°spray ball
  • Pressure relief valve on CIP arm
  • Shockproof pressure gauge on top manway
  • Temperature Gauge
  • Sample port with high grade sample valve
  • Carbonation Port with carbonation stone
  • Product outlet on cone
  • Bottom drain port
  • PT-100 Temperature probe
  • Complete fittings, valves

Optional Add-on include:

  • Spunding Valve
  • Dry hopping port on vessel
  • Dry hopping device – sight glass type
  • Ultra high quality sample tap (spiral-type)

Optional Upgrades

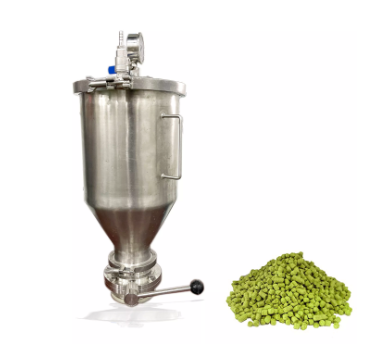

Dry Hop Adding Device - Sealed type

  • Dry hop adding device for 300-800L Fermenters
  • Connect onto the top of the dry hopping port
  • A safer solution when adding hops on the cold side
  • It is a must to dry hop to add aroma into your beers

Hop Cannon

  • Dry hops adding device for 500-2000L Fermenters
  • Connect to your wort pump and fermenters
  • Professional solution to dry hopping fresh hops
  • Once you start dry hopping, you'll never go back!
