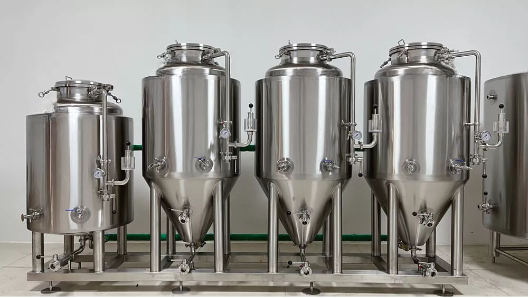

200L Fermentation Tank

Elevate Your Fermentation Game with the 200L Fermentation Tank & Unitank: Crafted for precision, these vessels provide the ideal environment for microbial transformation, offering meticulous temperature control and an efficient all-in-one solution for primary fermentation and maturation. Achieve brewing excellence with these technical marvels in your toolkit.

Fermentation tanks and Unitank fermenters are made of stainless steel 304, the effective volume is 200L, total volume is 250L.

Product Overview - 200L Fermenter

Vessel Configuration

  • Effective volume = 200L, total volume = 250L --> extra 25% head space
  • Net Dimension: 750mm Dia x 1710mm H
  • Oval head & 60°conical bottom
  • Made by SUS 304 Stainless steel, 100% TIG welded with 316 wire
  • Inner layer=3mm, pickling and passivating treated
  • Outer layer=2mm, Hairline polishing
  • Cooling jacket: Dimpled plate on cone and side
  • With glycol water inlet and glycol water outlet, tri-clamp type
  • PU Insulation layer=80mm on side and cone bottom
  • Design pressure 0.3MPa; Working pressure 0.15Mpa.
  • 60°Conical Cone bottom
  • 4 x heavy duty legs with leveling foot pads

Features include:

  • Top Manway, flange type
  • CIP arm with internal 360°spray ball
  • Pressure relief valve on CIP arm
  • Shockproof pressure gauge on top manway
  • Temperature Gauge

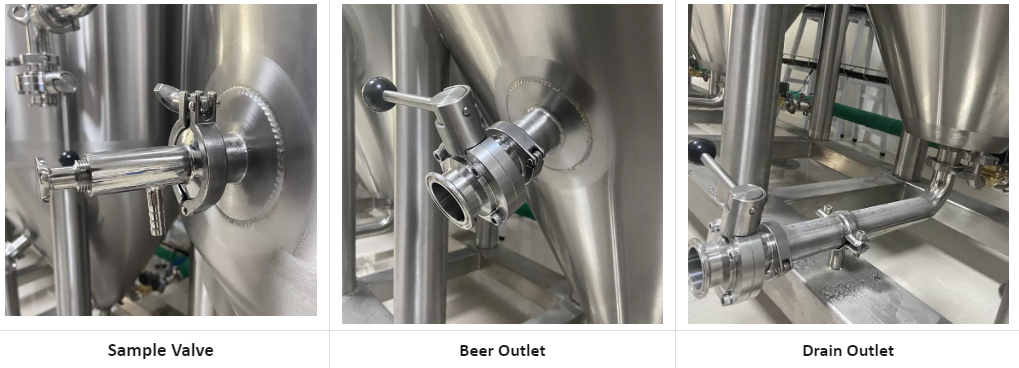

  • Sample port with high grade sample valve
  • Carbonation Port with carbonation stone
  • Product outlet on cone
  • Bottom drain port
  • PT-100 Temperature probe
  • Complete fittings, valves

Optional Add-on include:

  • Spunding Valve
  • Dry hopping port on vessel
  • Dry hopping device – sight glass type
  • Ultra high quality sample tap (spiral-type)
