Products   >>  1BBL SMART Brewhouse

1BBL SMART Brewhouse

Master Your Craft with our 1BBL 3-Vessel Brewhouse: Designed for artisanal brewers, this advanced system boasts separate vessels for mashing, boiling, and fermenting, providing meticulous control over every aspect of your brew. Harness the precision of an industrial-grade setup and elevate your brewing journey to new heights of excellence.

Our 1BBL brewing system is meticulously tailored for homebrew enthusiasts, aspiring microbreweries, pilot brewing experimentation, and even full-scale nanobrewery production.

Explore our range, also available in 2BBL, 3BBL, 4BBL, and 5BBL sizes, to find the perfect solution for your brewing ambitions.

Product Overview

1BBL SMART Brewing Equipment Brewing system is specially customised for homebrew hobbies, entry-level Micro Breweries, Pilot Brewing System, or a full-scale Nano-Brewery production.

• Smart

Mini scale industrial brewing equipment, with all the scaled down parts fittings, you will full in love with this optimised Brew center.

• Turnkey Solution

Installed & wired ready on a fully welded frame platform - nothing can be easier for your pilot brewing jobs.

•  100% Flexible Design

Atmospheric top lid enable a direct inspection & clean of inner space.

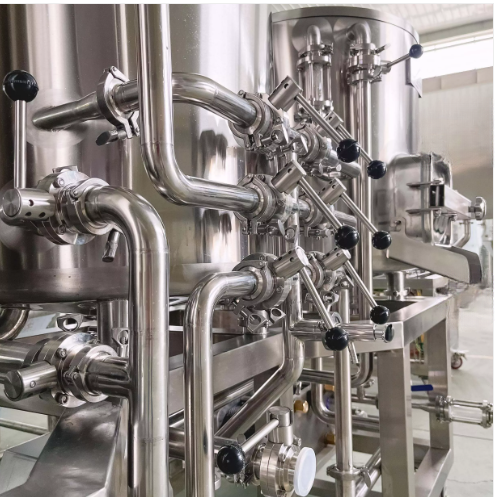

You will be able to pilot brewing with your professional brewing recipe on this unit, nothing can be easier with such a complete system configuration, pipelines, wort pump & hot water pump, heat exchanger, etc.


Semi-automatic Control System

Never give up your creative recipe with such a smart control system, temperature control, pump VFD speed control, international standard electric components take your brewing into the next level.

• Optional system volume from 100L to 250L.
• You only need 2 square metres of floor space to start your own brewery
• All material & accessories included, enjoy your high-quality mechanical operation
• Optional System power supply 110V/240V/400V

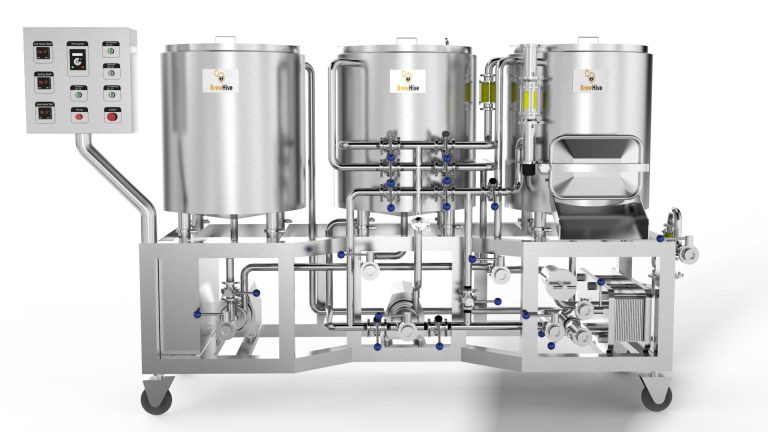

   Left: Hot Liquor Tank

   Middle: Kettle + Whirlpool Tank

   Right: Mash+ Lauter Tank

   Dimension: 2100mm*720mm*1600mm

   Heating Method: Electric elements

   Operability: Easy

   Control System: PID Control

   Application: Larger, Ale, IPA, Creative pilot Craft Beer

Inner-Jacket (SUS304), TH=3.0mm, pickling& passivating treated;
External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate;                         Atmosphere pressure lid, TH=3.0mm;

Tanks’ Insulation layer: PU-thickness= 50mm;

 100% high precision TIG welded joints;

 Strong universal wheels (with shaft);
Installation Method: Assembled ready to use, Removable
