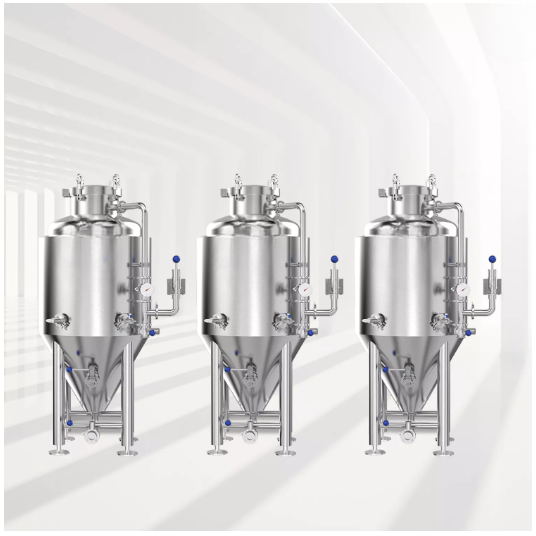

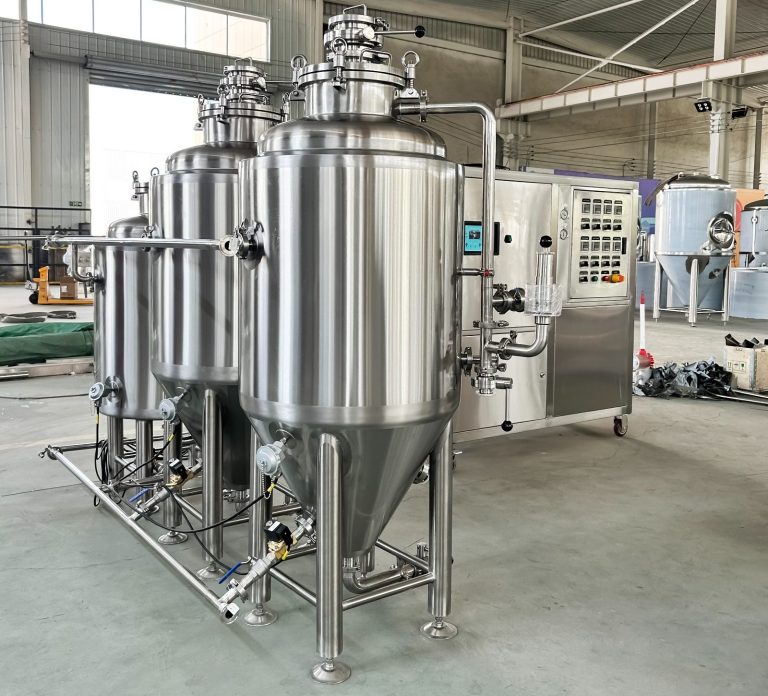

100L Unitank Fermenter

Discover the Unitank Fermenter: A Brewing Marvel. Combining primary fermentation and maturation in a single vessel, this specialized brewing equipment offers precise temperature and pressure control, optimizing your beer production process. Elevate your brewing efficiency with this space-efficient and quality-focused solution.

Fermentation tank, you may also heard some other names as conical fermenter, fermentation vessels, Unitank, or even FV, made by 304 sanitized stainless steel, 100% TIG Welding, is the key part to hold wort after brewing.

REQUEST PRICING

Product Overview - 100L Unitank Fermenter

Vessel Configuration

Effective volume = 100L, total volume = 125L --> extra 25% head space
Net Dimension: 640mm Dia x 1560mm H
Oval head & 60°conical bottom
Made from 304 Stainless steel, 100% TIG welded with 316 wire
Inner layer=3mm, pickling and passivating treated
Outer layer=2mm, Hairline polishing
Cooling jacket: Dimpled plate on cone and side
With glycol water inlet and glycol water outlet, tri-clamp type
PU Insulation layer=80mm on side and cone bottom
Design pressure 0.3MPa; Working pressure 0.15Mpa.
60°Conical Cone bottom
4 x heavy duty legs with leveling foot pads

Features include:

Top Manway, flange type
CIP arm with internal 360°spray ball
Pressure relief valve on CIP arm
Shockproof pressure gauge on top manway
Temperature Gauge
Sample port with high grade sample valve
Carbonation Port with carbonation stone
Product outlet on cone
Bottom drain port
PT-100 Temperature probe
Complete fittings, valves

Optional Add-on include:

Spunding Valve
Dry hopping port on vessel
Dry hopping device – sight glass type
Ultra high quality sample tap (spiral-type)

Stainless steel tank with pressure gauge and valve in an industrial setting.

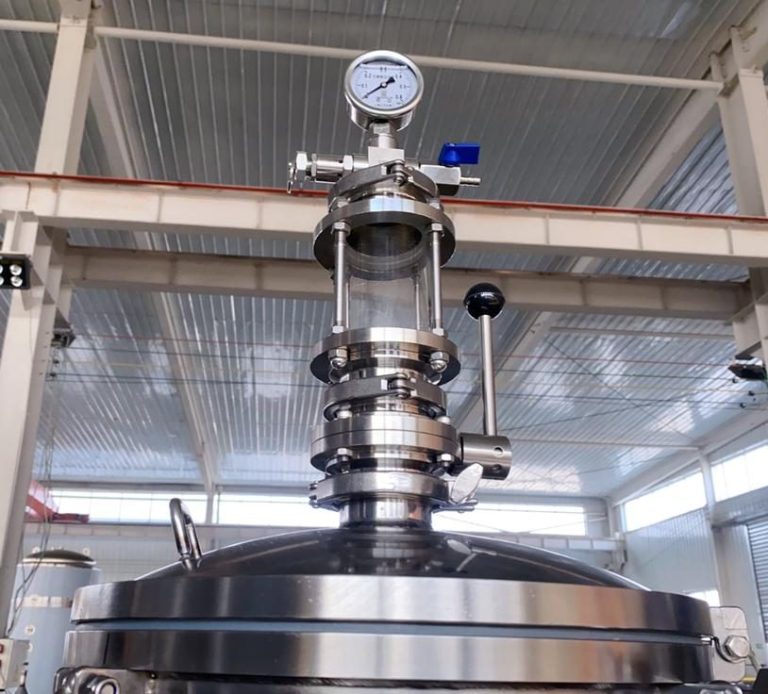

Dry Hops Adding Device

Dry hops adding device for 100L~300L Fermenters

Connect onto the top dry hopping port

don't miss it out if you are adding hops on the cold side.

Let's dry hopping to add aroma into our beers.

Three stainless steel fermentation tanks in a factory setting.

Glycol Cooling Pipelines between chiller & fermenter

We provide turnkey solution for your fermenting system as well. Please let us know if you have a confirmed premise and floor dimensions, we will work out the layout for you.

Hard pipeline connections is options for you to finalize cooling loops between chiller unit and fermenters cooling jacket. Easy to go.
