Products   >>  100L Brite Tank

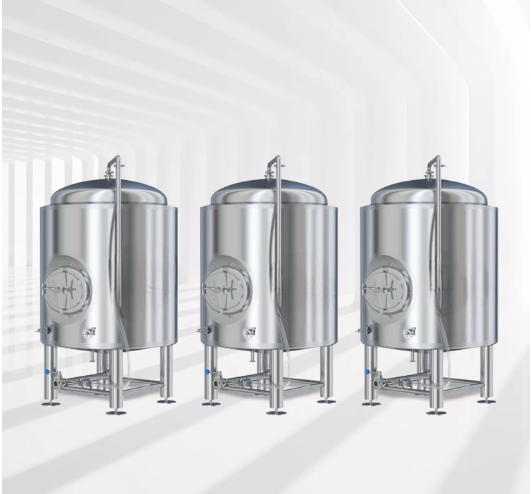

100L Brite Tank

Shine a Light on Quality: The 100L Brite Tank. Crafted for Precision Finishing. This technical masterpiece ensures crystal-clear beer with advanced temperature control and pressure management. Elevate your brew's brilliance with this essential component, designed for uncompromising quality in your brewing process.

Explore our range, also available in 1BBL, 200L, 2BBL, 300L, 3BBL, 400L, 4BBL, 500L and 5BBL sizes, to find the perfect solution for your brewing ambitions.

Product Overview - 100L Brite Tank

Vessel Configuration

  • Effective volume = 100L, total volume = 125L --> extra 25% head space
  • Net Dimension: 640mm Dia x 1100mm H
  • Dish head
  • Made from 304 Stainless steel, 100% TIG welded with 316 wire
  • Inner layer=3mm, pickling and passivating treated
  • Outer layer=2mm, Hairline polishing
  • Cooling jacket: Dimpled plate on cone and side
  • PU Insulation layer=80mm on side and cone bottom
  • Design pressure 0.3MPa; Working pressure 0.15Mpa.
  • 4 x heavy duty legs with leveling foot pads

Features include:

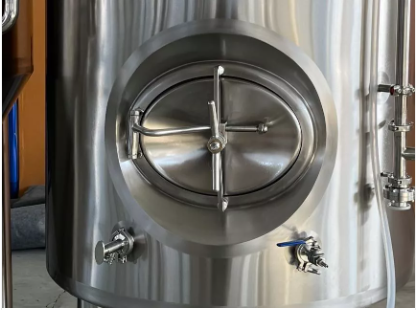

  • Top Manway, flange type
  • CIP arm with internal 360°spray ball
  • Pressure relief valve on top of tank

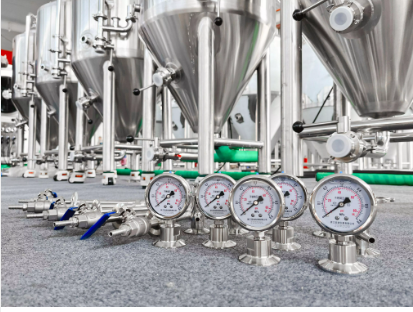

  • Pressure gauge on CIP arm
  • Sample port with high grade sample valve
  • Carbonation port with carbonation stone
  • Bottom outlet port
  • PT-100 Temperature probe
  • Complete fittings, valves

Optional Add-on include:

  • Ultra high quality sample tap (spiral-type)

Product Overview

We offer all kinds of customised Brewhouses, Fermenters, Brite tank, and system turnkey solutions to customers in the food and beverage industry.

With continuous R&D, innovative, value driven, you'll be served by the most cost-effective and suitable custom solution from our knowledgeable team.

We take pride in supplying the right equipment, training and service for your Industry. No matter how small or large your business is!

  • The brite tanks have extra 25% head space.
  • Generally speaking, the capacity of the fermentation tank is equal to the capacity of the brite tank.
  • A complete set of brewing equipment will be equipped with a brite tank.
  • The capacity of the brite tank according to your need.
